Specifications
Cutting Area:L3000mm* W1500mm
Cutting Speed:Adjustable
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0-25mm metal
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:BECKHOFF
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS
Warranty:2 Years
Laser Power:1000W /1500W/ 2000W / 2500W/3000W/4000W/ 6000W
Working area:1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Working Table Structure:Pallet Working Table
Driving Mode:Double ball screw driving / Double gear rack driving
Positioning Accuracy:±0.03mm
Cooling System:High precision constant temperature water chiller
Keyword:hot sale metal laser cutting machine
CNC Fiber Laser Cutting Metal Advantages
1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.
Main Technical Parameters
| Laser Type | Fiber laser generator | |
| Laser Power | 1000W/2000W/3000W/4000W | |
| Working area | L3000mm* W1500mm | |
| Working Table Structure | Pallet Working Table | |
| Control System | BECKHOFF | |
| Driving Mode | Double gear rack driving | |
| Idle/Processing Speed | 100m/min ; 30m/min | |
| Positioning Accuracy | ±0.03mm/m | |
| Cooling System | Dual temperature dual control chiller | |
| Protection System | Enclosure protection | |
| Laser Head | Raytools laser cutting head | |
| Power Supply | AC220V ± 5% 50 / 60Hz ; AC380V ± 5% 50 / 60Hz | |
| Total Power | 17KW / 8- 22KW | |
| Support Format | PLT, DXF, BMP, AI, DST, DWG, etc. | |
| Floor Space | 9m*4m | |
| Other Standard Collocation | Metal nesting software, dual pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. | |
| * Technical data, dimensions, appearance and color of machine are subject to change without notifi | ||

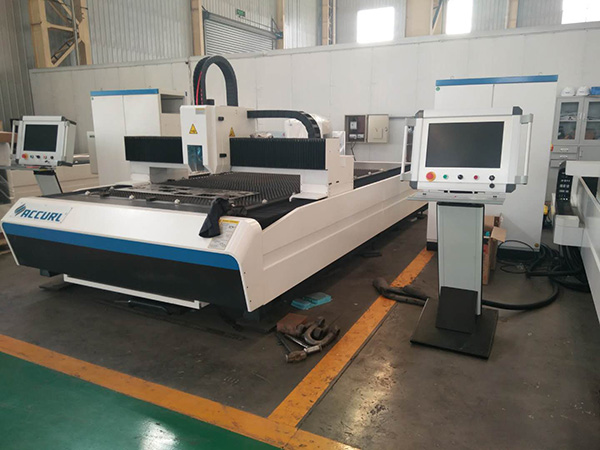

CNC Machine Introduction
1) Standard collocation of 2KW fiber laser generator and optional 700W,1000W,3000W fiber laser generator realize low operation and maintenance cost and maximum long-term investment returns and profits.
2) Enclosure design meets CE standard which realizes reliable and safe processing. Shuttle table/pallet working table is convenient for material uploading and unloading and further promotes working efficiency.
3) Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
4) Standard collocation of dual pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
5) Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
6) Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting. Optional collocation of 2000mm×4000mm, 2000mm×6000mm working table.
