Specifications
Cutting Speed:72m/min
Graphic Format Supported:AI, DST, DWG, DXF, DXP, LAS
Application:Laser Cutting
Condition:New
Cutting Thickness:6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:cypcut controller
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Model Number:KJG-150300DT with 800W
Certification:CE, ISO, SGS, UL
Product name:laser cutting machine
Laser type:IPG fiber laser generator from USA
Laser wavelength::1070nm
Laser power output rating::1500W
X-axis travel::1500mm
Y-axis travel::3000mm
Working table::Open design, fixed table
Driving mode::Double rack and pinion driving system
Position accuracy::0.05mm
Total Power consumption::30KW
After-sales Service Provided:Engineers available to service machinery overseas
Product Description

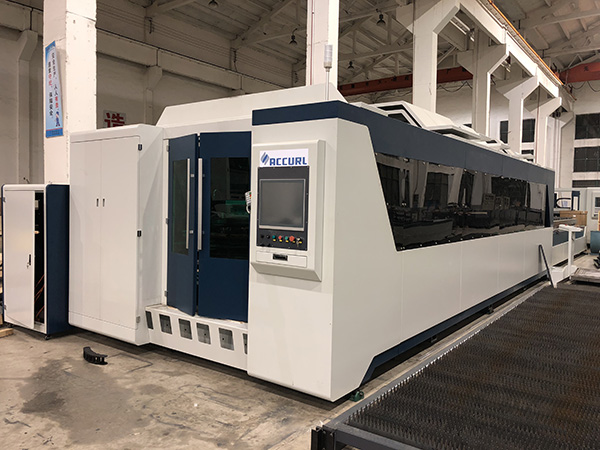

Accurl (BCL)fiber laser cutting machine is equipped with fiber laser which is energy-efficient, environment-friendly as well as highly efficient.
Recently, fiber laser medium is the most popular and stable laser source internationally. The laser beam of high energy density is focused on the surface of the material. Then the area melts, burns, vaporizes away, and the slag is blown away by a jet of gas, leaving a smooth seam with a high-quality surface finish made by a relative motion between laser light beam and preset routine for the material. That is to say, the automatic laser cutting can be realized when moving the light spot position by the mechanical systems controlled by CNC. KJG fiber laser cutting machine is high-tech equipment integrated with laser technology, CNC technology and mechanical technology.
SPECIFICATIONS FOR CNC Laser Cutting Machine | |||
Accurl 1000W Fiber Laser | Laser Power | Watt | 1000W |
Laser Brand | IPG | Made in USA | |
Cutting Area | mm | 1500x3000mm | |
Accurl 2000W Fiber Laser | Laser Power | Watt | 2000W |
Laser Brand | IPG | Made in USA | |
Cutting Area | mm | 1500x3000mm | |
Accurl 3000W Fiber Laser | Laser Power | Watt | 3000W |
Laser Brand | IPG | Made in USA | |
Cutting Area | mm | 1500x3000mm | |
Main Features
1) The Accurl laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and perfectly cut 6mm mild steel,120 holes can be cut within one minute.
2) 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
3) Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
4) Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
5) Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.
Fiber Laser Metal Cutting Machine Technical Parameters | |||
Model No. | KJG-150300JH | KJG-150300JH | XJGC-150300JH |
Laser Type | IPG / Coherent / Raycus | ||
Laser Power | 1000W | 2000W | 3000W |
Cutting Area | 1500mmX3000mm | ||
Working Table Structure | Fixed working table | Pallet Changer | |
Control System | PMAC full-closed loop servo control | ||
Positioning Accuracy | ±0.04mm | ||
Driving Mode | Double gear rack driving | ||
Idle/Processing Speed | 72m/min / 36m/min | 100m/min / 30m/min | |
Laser Head | Precitec / Golden Laser / Laser Mech | ||
Cooling System | Dual temperature dual control water chiller | ||
Protection System | Open Type | Enclosure protection | |
Format Supported | PLT, DXF, BMP, AI, DST, DWG, etc. | ||
Power Supply | 380V / 220V | ||
Total Power | 7KW / 11KW | 17KW / 8~22KW | |
Floor Space | 5.6m x 3.2m | 9m X 4m | |
Standard Collocation | |||
Our Service
1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
FAQ
No.1 How about your machine quality?We are worry about the quality.
RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
No.2 Whether the machine price can be more discount?
RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
No.3 How about your manufactory in CHINA
RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.
No.4 Where is your factory located? How can I visit there?
RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
