Specifications
Cutting Speed:40m/min
Application:Laser Cutting
Condition:New
Cutting Thickness:20mm(According to marerial)
CNC or Not:Yes
Cooling Mode:Water Cooling
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS, FDA

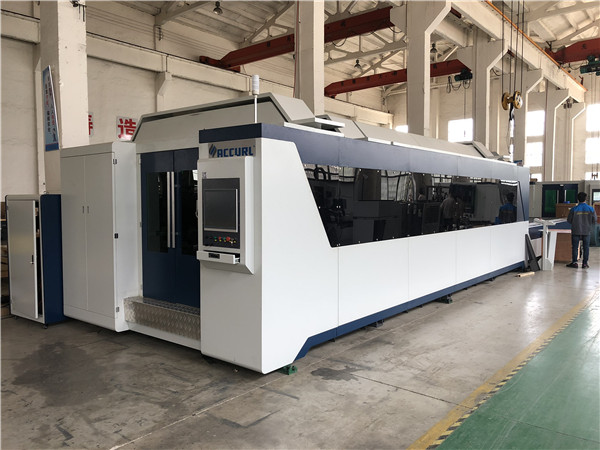

Product name:Fiber Laser Metal Cutting Machine
Function:Cutting Metal Materials
Power supply:380V 50Hz/60Hz/60A
Control system:Cypcut Control System
Color:White
Warranty:1 Year
Cutting materials:glasses,metal
Power:1500 W
After-sales Service Provided:No overseas service provided
Product Description
FIBER LASER CUTTING MACHINE is newly designed. It has wide cutting range, no matter metal or non metal. Fiber laser cutting machine equipped with imported TBI ball screw, Delta motor and ball screw guides. The positioning accuracy of the machine reaches 0.008mm, to guarantee the cutting quality of metal and non-metal materials.
Technical Parameter of 1390 Laser Cutting Machine | |
Item | Optical Fiber Laser Cutting Machine |
Machine Size | 2700*2112*1630 mm |
Machine Weight | 800 KG |
Working Area | 2500mm×900mm |
Laser Output Power | 1500w(fiber laser) |
Thickness of Cutting Material | 6mm(Carbon steel or stainless steel) |
Repositioning Accuracy | ±0.02 mm |
Max.Moving Speed | 40m/min |
Max. Acceleration Speed | 1G |
X/Y PositionaI Accuracy | ±0.03 mm |
X/Y Transmission | Taiwan grinding machine TBI lead screw |
Machine Operating Temperature | 0℃-40℃ |
Kind Of Drive | Grinding precision screw drive |
X/Y/Z axis Servo Motor | 750W/ 750W/ 200W(Japan) |
Strong Exhaust Fan | 220v-50hz-750w( China) |
Water Chiller | Tong Fei (China) |
Main Features
1.High precision cutting
2.Environmental protection
3.High quality material
4.Perfect after sale service
Our Service
I.Mature service:
Pre-Sales Service:Inquiry and consulting support, Free making samples support,View our Factory.
After-Sales Service:24 hour technical support by email , telephone or online video ,User friendly English manual for machine using and maintaining, Training how to install the machine and use the machine, Engineers available to service machinery overseas.
II. Large machine factory and large quantity producing ability, which can satisfy clients' large order in short time.
III. We adopt the strength export wooden case ,for shipping . It is efficiently protect the machine in good situation after long term transportation .
IV. We have details video can show every part of the operation , so after you getting the machine , and operate in time, and we can also totally according your requirement to do the video only for your job .
Packing & Delivery
1.Packed in containers which is suitable for long distance transportation.
2.Delivery time: Within 60 working days after receiving your deposit.
3.Payment terms: 30% T/T pay in advance as deposit, 70% balance T/T pay before delivery.
If you have any other question, or need more information
