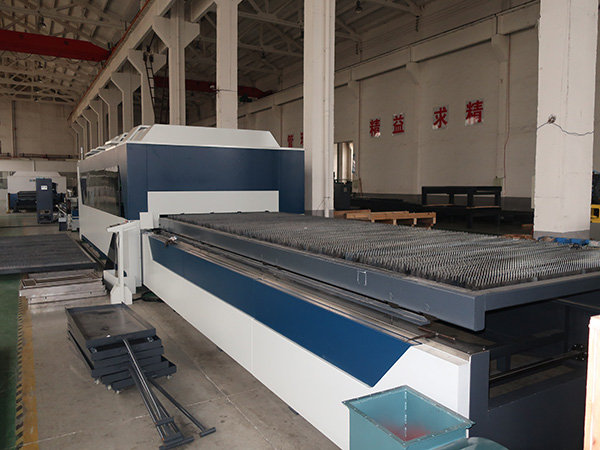

accurl 1kw,1500w,2kw, 3kw,4kw,6kw, 12kw fiber laser cutting machine

Accurl 1kw,1500w,2kw, 3kw,4kw,6kw, 12kw fiber laser cutting machine

Specifications


Cutting Speed:Adjustable
Graphic Format Supported:AI
Application:Laser Cutting
Condition:New
Cutting Thickness:Depends
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, ECA
Laser power:60w/80w/100w/130w/150w
Name:Fabric Laser Cutting Machine
Function:Cutting Nonmetal Materials
Laser head:Precitec
Laser tube:EFR
Driving system:Servo
Type:Laser Machining
Control system:DPS System
Keyword:Fabric Laser Cutter
Working table:Honeycomb
After-sales Service Provided:Engineers available to service machinery overseas

Product Overviews




The principle of Fiber laser cutting machine

Fiber laser generator is a new type of international development of the new fiber laser output of high energy density of the laser beam, and gathered on the surface of the workpiece, the upper area of the workpiece is instantaneous melting and gasification ultrafine focus spot irradiated by CNC machine system mobile spot irradiation position and automatic cutting.

The components

l  Fiber laser

l  Cutting table

l  CNC system

l  Cooling system

l  Assist gas

The advantage

l  Cutting journey can be 3015 and 2040, the power of fiber laser can be 500w-6000w

l  The lowest use cost: the machine power consumption is only 20-30% of the same kind of CO2 laser cutting machine

l  The highest stability: use the import original factory package fiber laser, stable performance, useful life can be 100000 hours

l  Highest cutting speed: high speed, high efficiency, the speed can be tens of meters per minute, it is twice of CO2 laser cutting

l  Lowest maintenance cost, fiber transmission, no need laser gas, can save a lot of cost.

l  Excellent beam quality, small focusing sport, good cutting edge.

l  Adapt imported guide transmission and servo motor, high cutting accuracy

Cutting materials

The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.

Application industry

The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.

The instructions of products

Fiber laser

l  Power can be 500W/700W/1000W/1200W/2000W…6000W

l  Can use IPG(Germany),nLIGHT(USA), Raycus (China)

l  Need to match water chiller (Inside)

l  Air conditioning (Outside)

Body of cutting table

l  Body of cutting table: The body is monoblock cast, use 300 cast iron, others often use 250 cast iron

l  X-axis and Z-axis use 500 ductile cast iron, none out of shape.

l  All the cast parts has been processed by 600°C - 650°C high temperature annealing treatment, can keep the machine not out of shape, lose the internal stress.

l  All the parts is processed by milling planer, the max tolerance can be 0.01mm in 1m

l  With exhaust system

CharacterData
Process dimension3000mm*1500mm
X-axis journey3000mm
Y-axis journey1500mm
Z-axis journey120mm
X/Y positioning accuracy±0.02mm
Z-axis positioning accuracy±0.008mm
X/Y repeatability positioning accuracy±0.015
Max cutting speed50m/min
X/Y max acceleration1G
Cutting table max load1t
Machine weight4t/6t
Laser power500w,700w,1000w
Size (length × weight × height)4500 ×2500 ×2300 (no switchboard) 4t
Size (length × weight × height)9900 ×2500 ×2300 (with switchboard) 6t



Service after sales


Head Science and Techology Co, always stick to service principle"Comfortable service,Easy usng ,assured quality" to service every clients.

A."One to One " exclusive services.We have a professional after-sales service team to provide "one to one "lifelong long technical support and maintenance training .let customers fully master fiber laser cutting skill.providing techonical support to clients during the whore process.

B.Instant response .No matter what kind of problems cients meet. We will offer service in solving problems as purpose, give reply and solve problem within 2 hours after receiving the feedback.

C.Spare parts green channel.We have protable,persionalized supply process and the exclusive spare parts supply base,providing high quality accessories, supplies and services to customers,let clients produce without any worries.
