Overview
Condition:New
Place of Origin:Anhui, China (Mainland)
Model Number:QC11Y/K
Voltage:220V/380V
Rated Power:based on actual model
Dimension(L*W*H):based on actual model
Weight:2000KG
Certification:CE ISO
Cutting Speed:60m/min
Laser Type:Fiber Laser
Cutting precision:≤±0.05mm
Application:Laser Cutting
Color:Customizable

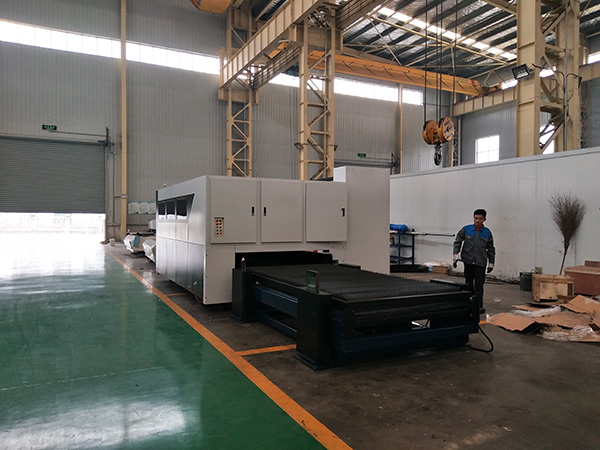

Product name:fiber laser cutting machine
Cutting mode:Cold Cutting
Control system:START Control System
Type:Metal Cutting Tools
Cutting thickness:0-200mm
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:3 Years
1. Beautiful Appearance of fiber laser cutting machine:
Design by the professional designer from Switzerland. The machine is more suitable for the ergonomics and use habits of the western people.
2. Stable Working Lathe of fiber laser cutting machine:
After 30 days high temperature aging treatment, the working lathe is more stable and no deformed. To make sure the cutting accuracy to 0.02mm.
3. Y axis Double Driver of fiber laser cutting machine:
MORN machine Y axis use double drive system. To make sure the machine with faster moving and cutting speed, and can help to ensure the accuracy to 0.02mm;
4. Fast Speed of fiber laser cutting machine:
Max idle speed could up to 100M/min, improve working efficiency.
5. Leapfrog Cutting of fiber laser cutting machine:
Improve the cutting speed, processing efficiency and accuracy;
6. Power off Cutting Memory of fiber laser cutting machine:
When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point;
7. High Electro-optical Conversion Efficiency:Fiber laser cutting machine can convert up to 30% electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.
Hydraulic system of fiber laser cutting machine
1.The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.
2.All seals in cylinder is imported,the most famous brand,good quality and high performance
3.Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.
4.Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly
Electric control system of aluminum cutting machine
1.Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
3.Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light
