china cnc machine 3015 1000w fiber laser cutting machine price for pipe cutting

china cnc machine 3015 1000w fiber laser cutting machine price for pipe cutting

Specifications

Cutting Speed:0-60000mm/min
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2-6mm, 0.2-6mm(Depending on the material)
CNC or Not:Yes
Cooling Mode:Water Cooling
Place of Origin:Anhui, China (Mainland)
Model Number:AK-47
Laser type:Fiber laser
Electro - optical conversion efficiency:25-30%
Working area:4500mm*2450mm*1700mm
Power Requirements220V 50Hz/60Hz
The maximum load of the table:500kg
Total weight of machine:2300kg
Place of Origin::Shanghai,China
Laser wavelength:1070-1080nm
Maximum speed:60000mm/min
After-sales Service Provided:Overseas third-party support available

Product Description

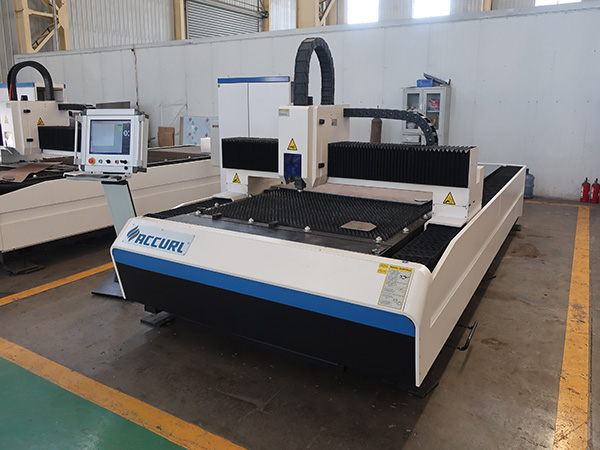

laser cutting machine, is based on the needs of small hardware industry research and development of thin metal fiber laser cutting machine, using gantry structure, high precision rack rail drive, the country's leading CNC laser cutting system, reinforced welding bed, machine stability Reliable, flexible operation and simple, high-speed drilling to achieve the cutting function, professional cutting all kinds of sheet metal, precision accessories, hardware tools, gifts and other metal materials.
Laser type
Fiber laser
Electro - optical conversion efficiency
25-30%
Working area
4500mm*2450mm*1700mm
Cutting Thickness
0.2-6mm(Depending on the material)
Power Requirements
220V 50Hz/60Hz
Total weight of machine
2300kgs
Laser wavelength
1070-1080nm
Maximum speed

60000mm/min

Main Features

1） servo dual-drive gantry structure: bridge gantry structure, imported rack rail drive, the use of centralized lubrication device, easy maintenance;
2）stable and practical: reinforced welding bed, high temperature tempering vibration aging to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
3） industrial aesthetics design: export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
ASEADCUT US fiber laser control system, with laser power adjustment function, to ensure the quality of cutting, easy to operate; easy to use;
4）high-quality cutting: Switzerland RAYTOOLS professional laser cutting head, to ensure the best cutting effect;
5）efficient material: used in the standard specifications of metal sheet cutting, saving time and material;
6）fiber laser: the use of Chong Xin laser, stable and reliable power in the domestic first brand, performance guarantee.

Machine Parts

Name:Laser cutting head

Equipped with a non-contact capacitive sensing device. Improve the product's pass rate. Lens replacement using a drawer, the entire replacement process is convenient and fast. Optical path system with transmission efficiency, stability, school light, maintenance and other advantages

Machine Parts

Name:CNC numerical control system

To WINDOWS as a platform, with open structure, simple operation, easy to learn, is the CNC system and the traditional CNC system, the biggest difference. The system provides machine parameters, PLC program, user-friendly in accordance with their needs to configure and debug, to achieve complex functional requirements of the machi
