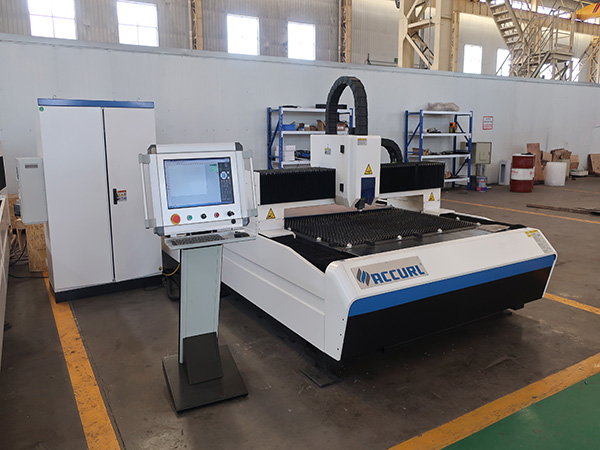

Specifications
Cutting Area:1300*2500mm/1500*3000mm
Cutting Speed:0-25m/min
Graphic Format Supported:AI, BMP, DWG, DXF, LAS, PLT, GIF, JPEG, PCX, TGA, TIFF, CDR
Application:Laser Cutting
Condition:New
Cutting Thickness:according to materials
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Shandong, China (Mainland)
Brand Name:RECI
Certification:CCC, CE, ISO, FDA
Warranty:2 Years
Product name:Best Price SS Carbon Steel Metal CNC Laser Cutting Machine Supplier
Laser medium:Semiconductor pumped continuous fiber
Laser power:300w/400w/500w/1000w/1500w/2000w
Max.cutting speed:0-25m/min
Repeat positioning accuracy:±0.02mm
Total electric power consumed:<13kw
Power supply:380v/50hz/60hz/60A
Min. line width:≤0.1mm
Driving and transmission:Imported servo motor and high-precision gear rack
Advantages of Metal Laser Cutting Machine:
• Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
• High cutting speed: Cutting speed is more than 20m/min
• Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
• High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
• Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
• Easy operations: fiber line transmission, no adjustment of optical path;
• Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Technical Parameter of Metal Laser Cutting Machine:
| Product name | Best Price SS Carbon Steel Metal CNC Fiber Laser Cutting Machine Supplier |
| Max. cutting range | 1500*3000mm |
| Laser medium | Semiconductor pumped continuous fiber |
| Laser power | 300w/400w/500w/1000w/1500w/2000w |
| Working area | 1500*3000mm |
| Max. cutting speed | 0-25m/min |
| Repeat positioning accuracy | ±0.02mm |
| Total electric power consumed | <13kw |
| Power supply | 380v/50hz/60hz/60A |
| Min. line width | ≤0.1mm |
| Driving and transmission | Imported servo motor and high-precision gear rack |
| Power requirements | 380v/50hz/60hz |
| Environment temperature | 5~35℃ |
| Continuous working time | 24 hours |
| Weight of the machine | 4000 kg |
| Natural life of laser | 100000 hours |
| Laser wavelength | 10.6μm |
| Min. shaping character | Chinese character 2mm/letter 1mm |
| Graphic format supported | BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF |
| Cooling system | Water cooling |
| Keywords | metal laser cutting machine |
1000w cutting thickness parameter sheet(for reference):
| Material | Thickness | Speed(mm/s) | Gas type | Air pressure(Mpa) |
| Stainless steel | 0.5 | 500 | N2(Nitrogen) | 1.5 |
| 1 | 300 | 1.5 | ||
| 2 | 100 | 2.0 | ||
| 3 | 40 | 2.3 | ||
| 4 | 18 | 2.5 | ||
| 5 | 12 | 2.5 | ||
| Carbon Steel | 1 | 300 | O2(Oxygen) | 0.6 |
| 2 | 100 | 0.65 | ||
| 3 | 60 | 0.5 | ||
| 4 | 45 | 0.4 | ||
| 5 | 30 | 0.4 | ||
| 6 | 30 | 0.13 | ||
| 8 | 16 | 0.13 | ||
| 10 | 10 | 0.15 |

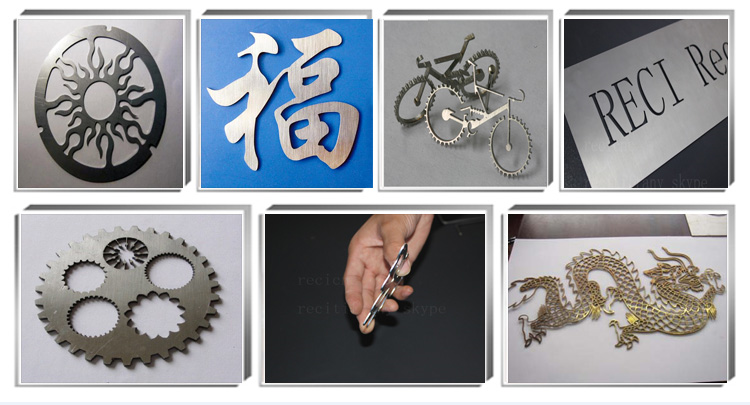

Application of Metal Laser Cutting Machine:
Applicable Industries:
|
|
|
|
|
|
|
|
|
|
|
Applicable Materials:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FAQ:
Q1. Trade company or manufacturer?
A: We are manufacturer, warm welcome to visit our factory!
Q2. Is it easy to operate for the new user?
A: It is very easy, we offer you operating video for English language, also our technician can help you via MSN, Skype teamviewer etc.
Q3. What I need to do when the machine suffer trouble?
A: Make sure all the wires be connection well, and keep your lens and mirrors be clean, then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A. After 3 hours working, it’s better close 10 minutes. B. Keep lens and mirrors clean. C. The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5. What about MOQ?
A: No MOQ limit, If you purchase 20 sets or more, we will give you some discount.
