Specifications
Cutting Area:1500*3000mm
Cutting Speed:80m/min
Graphic Format Supported:AI, PLT, DXF, BMP, DST
Application:Laser Cutting
Condition:New
Cutting Thickness:Depends on material
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Certification:CE
Warranty:2 Years
Laser Source:MAX
Cooling way:Water cooling CWFL-1000W
Working voltage:220/50-60HZ
Transmission:Gear rack
Motor:Japan Fuji motors and drivers
Control system:CYPCUT control system
Following laser head:Yes

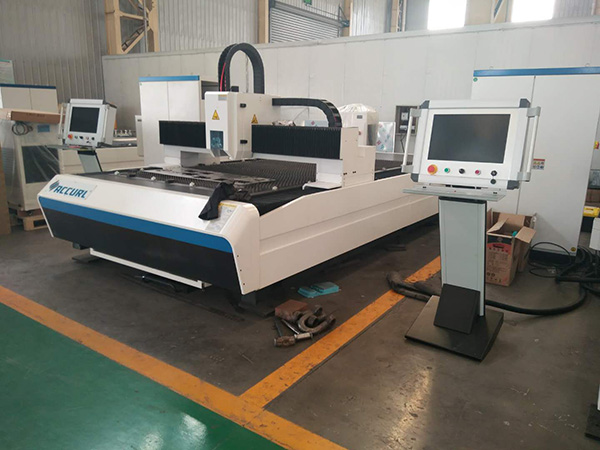

Product name:Fiber laser cutting
Detailed Parameters
| Work table | saw tooth work table |
| Working area (mm) | 1500x3000 mm |
| Laser power (walts) | MAX 1000w ( 500w/ 2000w optional) |
| Laser type | fiber laser |
| Power supply | AC380 50HZ |
| Position speed | 2000mm/min |
| Locating precision | <0.01mm |
| Resolution ratio | ≤ 4500dpi |
| Control configuration | Cypcut control system |
| Data transfer interface | USB(offline) |
| Cooling way | Water cooling CWFL-1000W |
| Compatible Software | CorelDraw, Photoshop, AutoCAD |
| Machine packing | Veneer case |
Advantages of Fiber Laser Cutter
1.High Efficiency--The rapid cutting speed is two times higher than normal laser cutting machine.
2.Environment friendly--Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption--The power consumption is 20%-30% lower than ordinary laser cutting machine.
4.Maintenance-free--For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted. The laser generator with longer lifetime which no need maintaince during usage
FAQ:
1) May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
Equiped with Japan Servo motor and driver with big strength, the max. moving speed 100m/min, max cutting speed 40m/min. And the speed can reach 1.5-2m/min if cut 4.5-5mm stainless steel.
2) To accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, to support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
3) Can power be controlled with two layers (one cut another mark) in which cut and mark on one metal part?
