Specifications
Cutting Speed:25m/min
Graphic Format Supported:AI, DXF, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:6mm mild steel or carbon steel, 3mm stainless steel, 2mm aluminum
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:CypCut
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS
Product Type:Thin Metal Fiber Laser Cutting Machine
Laser Source:IPG, SPI, Nlight (optional)
Lifetime of Laser Source:100, 000 hours
Advantage of Fiber Laser Cutting Machine:low consumption, high conversion rate, cost effective
Cutting Materials:Metals
Power Supply:AC380V, 50/60Hz
After-sales Service Provided:Engineers available to service machinery overseas

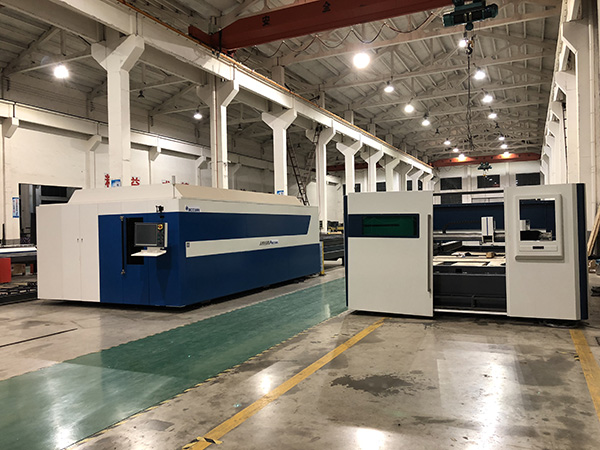

1. Description of Fiber Laser Cutting Machine
Fiber Laser Cutting Machine can cut different metals, such as carbon steel/mild steel, stainless steel, alloy steel, aluminum, titanium alloy, etc. It boasts fast cutting speed and high cutting precision. Work table size 2513, 3015, 4015, 4020, 6015, 6020 can be customized.
2. Key Information of Fiber Laser Cutting Machine
| Product Type | Fiber Laser Cutting Machine |
| Cutting Material | carbon steel/mild steel, stainless steel, alloy steel, aluminum, titanium alloy |
| Applied Industries | shipbuilding, railway locomotives, automobile, high pressure vessels, electric cabinets, household appliances, textile machinery, engineering machinery, High precision parts, elevators, sheet metal processing, etc.
|
| Graphic Format Supported | AI, DXF, PLT, GBX
|
| Control System Functions Supported | bridge connection, leapfrog, slotting compensation, etc. |
| Main Parts | Machine Tools, Fiber Laser Source, Cutting Head, Control System, Driving System, Water Cooling System |
| Core Parts & Brand & Lifetime | Core Parts: Fiber Laser Source Brand: IPG, Raycus (optional) Lifetime: 100, 000 hours |
| Cooling Mode | Water Cooling System |
| Continuous Working Hours | 22 hours |
| Marking Software | English Version Graphic Format Supported: AI, DXF, PLT, GBX Easy Operation With Powerful Function |
3. Feature of Fiber Laser Cutting Machine
long lifetime; excellent beam quality; precision and smooth cutting edge.
fast cutting speed. It’s three times quicker than CO2 laser cutting machine.
high conversion rate between laser and electricity. (as high as 30%); low electricity consumption.
low operation costs. It’s flexible transmission. It does not require working gas, which saves operation costs.
high stability and precision
powerful functions. It’s equipped with professional CNC cutting software, which supports AI, DXF, PLT, GBX files. It boasts below functions, including bridge connection, leapfrog, slotting compensation, etc.
High Speed; High Performance; High Efficiency; Low Gas Consumption; Low Electricity Consumption; Low Operation Costs.
4. Main Parts Introduction
Machine Tools
Fiber Laser Source
Cutting Head
Control System
Driving System
Water Cooling System
FAQ
Q: Which metal can cut? What’s cutting thickness of 500w fiber laser cutting machine?
A: Fiber laser cutting machine can cut different metals, such as mild steel/carbon steel, stainless steel, aluninum, alloys.
As for 500w fiber laser cutting machine, it can cut max. 6mm carbon steel/mild steel, 3mm stainless steel, 2mm aluminum.
Q: What’s consumables of fiber laser cutting machine?
A: Protection lens, cutting nozzle and ceramic parts. Price is very economical.
Q: If we need to cut work piece with different height, is it available?
A: Yes, it can cut work pieces with different height. The focus length can be adjusted automatically.
Q: Can we cut both sheet metal and tube or pipe using this model?
A: This design is used for sheet metals cutting. If you need to cut tube or pipe, we will add a rotary device as per your work piece’s specifications.
Q: What’s package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: What’s delivery time?
A: Generally speaking, lead time is 20 working days after receive the payment.
