Specifications
Cutting Speed:50m/min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:According to your materials
CNC or Not:Yes
Cooling Mode:Water Cooling
Control SoftwarePrecitec
Place of Origin:Anhui, China (Mainland)
Model Number:UT-1530
Certification:CE, ISO
Fiber laser cutting machine name:CNC Fiber Laser Cutting Machine For Stainless Steel Carbon Steel
Laser power:500W /750W/ 1000W / 2000W / 3000W
Laser cutting head:German Preste
Guide rail:Taiwan HIWIN or PMI
Motor and driver:Japan YASKAWA servo motor and driver
Reducer:Tawian TBH Reducer
Mode number:F-1325
Axial positioning speed:+-0.03mm/m
Power requirement:AC380V/50Hz
Max table load:1200kg
After-sales Service Provided:Engineers available to service machinery overseas

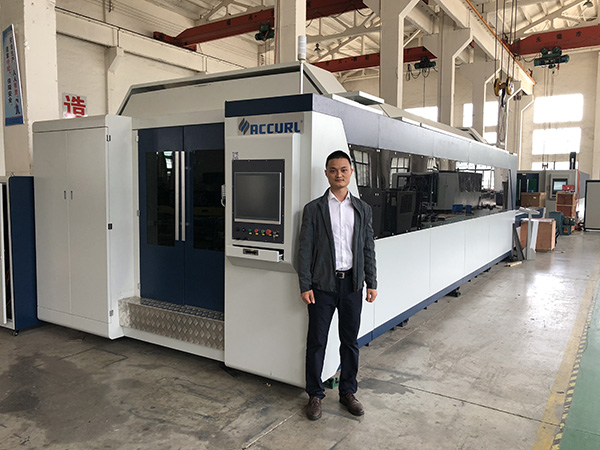

Product presentation
The Fiber Lasers bring you a cost effective, low-maintenance, low operating cost, environmentally friendly solution to your organization. We deliver a machine that provides quality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.
• Manufactured by people who use their own machines.
• The resonator comes with a 100,000 hour warranty from the manufacturer (IPG/Raycus)
• Higher cutting speeds possible
• Dual interchangeable tables allow for faster loading and unloading, reducing downtime
• Laser wavelength is one-tenth of a fiber laser
• Reduction in cutting variables or tribal knowledge
• Fiber Laser is extremely efficient, equates to very low power consumption
• Low cost of operation, energy cost reduced, no laser gases requied to produce beam
• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)
• Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.
Technical parameters
| Model | ECO-FIBER-1530 | UT-1530 | Option |
| Max Cutting Range | 1300*2500mm | 1500*3000mm | According to Demands |
| Machine Size(L*W*H) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| Accessory Parts(L*W*H) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | Single Core Junction Semiconductor Module | ||
| Max Cutting Speed | 25m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 500W(Option 750W/1000W/2000W) | ||
| Min Line Width | 0.1mm | ||
| Cutting Depth | 0.2-6mm | ||
| Driving and Transmission Way | Imported Servo Motor and Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg | ||
