Specifications
Cutting Speed:0-60000mm/min
Graphic Format Supported:DWG, DXF
Application:Laser Cutting
Condition:New
Cutting Thickness:0-30mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS

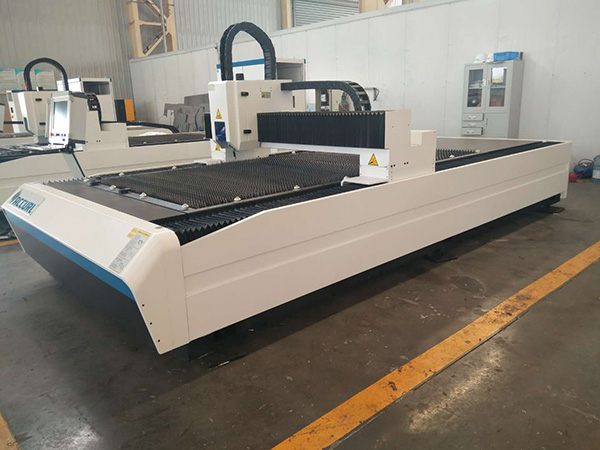

Product name:metal processing fiber laser cutting machine
Keyword:500W Fiber Laser Cutting Machine price
Laser power:500W / 1000W / 2000W / 3000W
Function:Cutting Metal Materials
Name:Chinese Fiber Laser Cutting Machine Price
Color:Required
Type:Fiber Lasr Cutting
Model:Processing Metal
Working area:1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Certificate:ISO CE
After-sales Service Provided:Engineers available to service machinery overseas
Product Description
Machine table Features:
1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
2,The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.
4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel 500w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter 4020 cnc fiber 500 watt laser metal cutting machine 4m
Technical Specifications, we can also make model according to customer request:
| Effective size(mm) | 4000*1500 | 3000*1500 | 4000*2000 | |
| Max process height(mm) | 90 | |||
| Effective stroke | X axis(mm) | 4550 | 3050 | 4050 |
| Y axis(mm) | 1550 | 1550 | 2050 | |
| Z axis(mm) | 100 | |||
| Position accuracy | X axis(mm/m) | 0.03 | ||
| Y axis(mm/m) | 0.03 | |||
| Z axis(mm/m) | 0.01 | |||
| Repeated accuracy | X axis(mm) | 0.02 | ||
| Y axis(mm) | 0.02 | |||
| Z axis(mm) | 0.005 | |||
| Fast positioning Speed | X axis(m/min) | 80 | ||
| Y axis(m/min) | 80 | |||
| Z axis(m/min) | 30 | |||
| Max cutting speed | 30m/min | |||
| Max cutting thickness | depends on laser power | |||
| Power consumption | depends on laser power | |||
| Protection level | IP54 | |||
| Machine weight (Ton) | 4.9 | 4.5 | 5.3 | |
| Size L*W*H(mm) | 5820*2285*1346 | 4516*2220*1346 | 5628*2950*1346 | |
Our Services
(1) Two year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 18 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery.We will take machine photos and make
machine working image for you ,after gettingyour agreement ,then we will book a ship.
(6) Providing technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance).
(7) If you have any problem during your use.you need our technician to judge where the
problem is and help you to solve it. We can provide team viewer and skype with cam till
all of your problems solved.
FAQ
Q1. Trade company or manufacturer?
A: We are manufacturer, welcome to visit our factory!
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating video ,also our aftermarket technician can help you via Wechat,Whatsapp ,Skype teamviewer etc.
Q3. What should I do when the machine is in trouble?
A: Make sure all the wires be connecting well ,and keep your lens and mirrors clean(only for Yag laser cutting machine) ,then check your laser tube and share details with us.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic graphic design software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.
Q5: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser won’t shoot the skin and eyes directly.
In order to provide a better offer for you, please let me know your requirements as below:
1) What's the materials you want to cut ?
2) The thickness of each cutting materials? max/usual thickness.
3) What's the size of metal you want to cut ?
4) What is the final products ?
5) Are you end user or machine distributor?
