Specifications
Cutting Area:1500x3000mm
Cutting Speed:12 meters/min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0-6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO
Warranty:1 Year

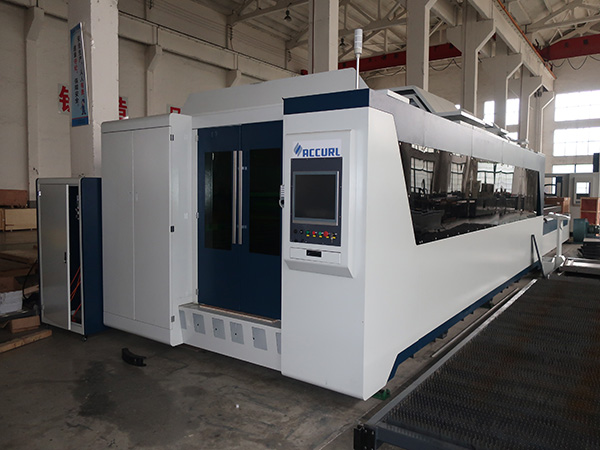

Product name:fiber laser cutting machine
Motor type:Japan servo motor
Transmission system:Hiwin square rail and ball screw
Laser power:Raycus fiber laser
Laser wavelength:1080nm
X,Y-axis location accuracy:±0.01mm
Machine weight::3500kg
Product Description
Features:
1. Stable machine body structure: it adopts gantry structure and high-strength cast aluminum alloy X-Axis beam. So it improves the stable of cutting machine and the precision of working.
2. High-performance transmission system: high power Three Japan Panasonic servo motors and Double Taiwan HIWIN ball screw. X and Y axis are equipment with 1500 watts Panasonic servo motors and Z axis is 400 watts. Transmission system is used TAIWAN HIWIN ball-screw which is best in the field. These parts insure the cutting speed and high precision.
3. Advanced laser generator: fiber laser generator imported from UK GSI company with flexible optical path. This kind generator has long lifetime and stable laser power. GSI company has been working on laser device for many years and has a pretty good fame in the world.
4. Highly sensitive cutting head: this cutting machine equiped with original laser-mec cutting head imported from USA. LaserMech cutting head is of good quality and with dynamic focus system. So it can sure the high quality of cutting samples.
Parameters:
Max. Working area | 1500mm*3000mm |
Cutting thickness | 0.5mm-5mm |
Laser Wavelength | 1080nm |
Rated Laser power | 500-watt RAYCUS fiber laser |
X-axis and Y-axis Location accuracy | ±0.01mm |
X-axis and Y-axis repeat Location accuracy | ±0.01mm |
Min cutting Line Width | 0.02mm |
Max. cutting speed | 12m/min |
Driving system | Japan Panasonic servo motors |
Transmission way | HIWIN square rail and ball-screw |
Machine dimension | 4.0m*2.5m*1.7m |
Applicable materials | Stainless steel ,Mild steel, Carbon steel, Titanium etc. |
Whole machine floor space | 4.0×2.5×1.7m |
Our Service
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1.Technical support by phone, email or MSN/Skype 24 HOURS.
2.Friendly English version manual and operation video CD disk.
3.Engineer available to service machinery overseas.
C After sales services:
Normal mashine is properly adjusted before dispatch.
You will be able to use the machine immediately.
You will be able to get free training advice towards our machine in oue factory.
You will also get free suggestion and consulting,technical support and service by email/fax/tel and lifetime technical support
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business foa many years.
3.Company in busniess for many years.
4.Over 50 countries cuatomers served!
5.Buy direct saving your money!
6.All machine with CE, SO, BV certificate.
7.Machine and spindle warranty 1year.
8.Our enginner can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best soultion within 24 hours
10.Fast delivery,save your time.
