Specifications
Cutting Area:3000*1500mm
Cutting Speed:30m/min
Graphic Format Supported:AI, PLT, DXF, BMP, LAS, DXP
Application:Laser Cutting
Condition:New
Cutting Thickness:0-30mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui,China (Mainland)
Certification:CE, ISO, SGS, CCC
Warranty:1 Year
Laser source:IPG/Raycus/nNIGHT/MAX
Cutting head:Precitec/Raytools/OSPRI/WSX
Servo type:Servo motor
Cooling system:Water Chilller
Laser power:500/750/1000/1500/2000/3000w or as customized
Working area:1500*3000mm
Cutting materials:carbon steel/stainless steel/aluminum/copper
Electic component:French Schneider
Transmission System:YYC
Product Application

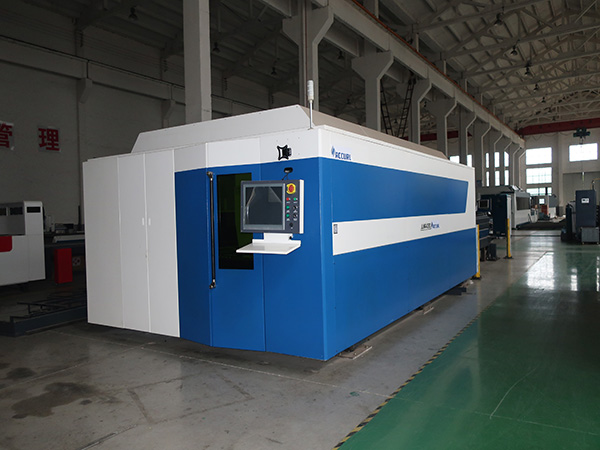

CL-G3015A CNC fiber laser cutting machine is a complete set of laser cutting equipment, which is integrated with fiber laser, chillers, fiber cutting heads, cutting machine tools, control system, water system, air extraction system and so on. The whole machine adopts fixed workpiece and movable gantry structure. It is a two-axis, three-axis controlled CNC laser cutting machine. Among them, the X Y axis linkage realizes the plane cutting feed Z axis floating tracking workpiece surface. Four CNC shafts of the equipment are guided by rolling guideways, and the cutting plate part X, Y, Z axis is driven by AC servo gear rack, among which X,Z axis is driven by AC servo gear rack. The main bed, Y shaft adopts steel structure beam, dynamic performance, among which laser cutting head, AC servo motor, ball screw pair, rolling guide pair, reducer, gear and rack pair all choose well-known brand. The CNC system adopts the domestic brand laser special numerical control system, configure the professional cutting control software and the auxiliary programming software. Compact structure, sufficient stiffness, good reliability and high cutting efficiency.
The CNC fiber laser cutting machine is suitable for cutting stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, aluminum alloy, titanium alloy and other metal materials.
Main Features
1. Moving gantry beam adopts new structural design as well as new manufacturing process, which kept stability under high acceleration and made the extrusion aluminum alloy with big length-width. This decreased 12% in weight and increased 20% in stiffness comparing casting beam.
2. CNC system written with human-computer interaction interface which adopt Chinese & English control software, made the operation more simple and convenient.
3. The cutting area with wide vision as there are three open sides, which make more easier to load and unload raw materials. It can be applied in different space.
4. Partitional structure used in electric control cabinet can meet various spatial arrangement.
5. Cutting chamber adopts moving grid to accurately realize endless cutting and save both material and cutting time.
6. Dust-removal structure on base part become more efficiency as the attached device made tuyere very close to cutting area. This also made dust-removal device avoid laser to ensure a long work life.
7. This special designed laser cutting head could do high-efficiency cutting to material in a particular thickness through the adjustment of focal distance, focus diameter and beam-waist cutting area, strong power, load material both front and back, all do good to save time.
Technical Parameters
Cutting Range (mm) | 1500X3000 | 1500X4000 | 1500X6000 | 2000X4000 | 2000X6000 | |
X Axis Stroke (mm) | 1525 | 1525 | 1525 | 2025 | 2025 | |
Y Axis Stroke (mm) | 3050 | 4050 | 6050 | 4050 | 6050 | |
Z Axis Stroke (mm) | 300 | 300 | 300 | 300 | 300 | |
XY Axis Positioning Accuracy (mm) | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | |
Re-position Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
Laser Power (w) | 500/750/1000/1500/2000/3000/4000/6000 | |||||
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
